Name: Front Subframe Mini Automatic - Genuine
SKU: KGB10024
Price: 480.012001 GBP
Availability: InStock

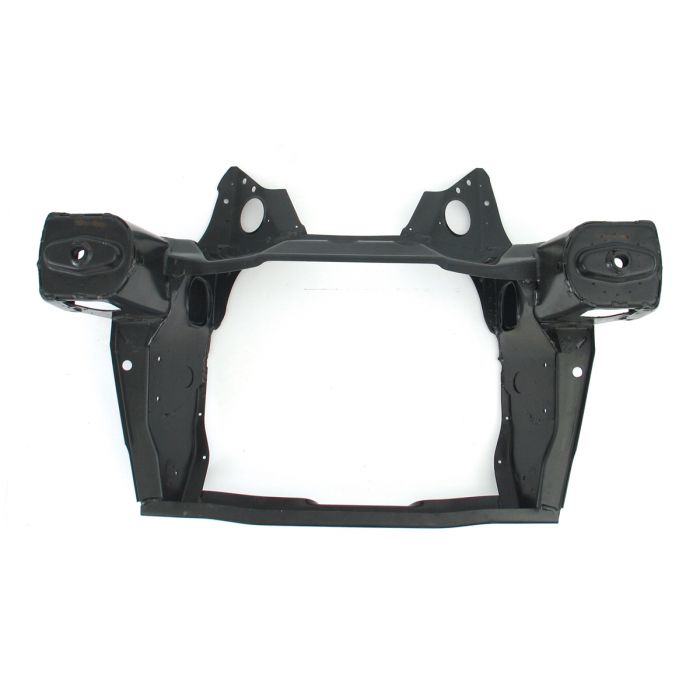

KGB10024 Genuine Mini automatic front subframe.

This front subframe is manufactured by British Motor Heritage using the original tooling and jigs, ensuring that this is the best replacement part for your Mini if a new subframe is required. Fits all automatic Minis from 1976 to 1997.

The shape of the automatic subframe is different to the manual type. The engine mountings are in slightly different places and the front crossmember is curved out to allow the fitment of the larger automatic gearbox. It is possible to fit the manual engine and gearbox into this subframe using our mounting conversion kit MSK016.

Buy top quality Classic Mini subframes, spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Part No.

	Genuine built up and ready to fit (pre '96)		HMP241001
	Genuine built up and ready to fit ('97 on)		HMP241003
1	Genuine dry suspension models ('59-'76)		21A2570
1	Genuine dry suspension models 998cc ('76-'91)		KGB10022
1	Genuine SPi/ 1275cc ('91-'96)		HMP241004
1	Genuine MPi 1.3i ('96-'01)		HMP241005
1	Genuine Automatic hydrolastic (early)	NLA	21A1846
1	Genuine Automatic - pre 1997		KGB10024
2	Front mounting bolt	each	GFK5185
3	Washer - front mounting bolt	each	GFK1114
4	Spring Washer - front mounting bolt	each	GFK1125
5	Nut - front mounting nut - 5/16"UNF, nyloc	each	GFK3322
6	Packing washer - front mounting bolt	each	2A4292
7	Bolt - subframe mounting - dry suspension	to '76	21A90
8	Locktab - subframe mounting bolt		21A1470
9	Grommet - locktab		RFR220
10	Bolt - subframe mounting - hydrolastic		HBZ534
11	Spacer - subframe to body	to '76	21A2341
12	Rubber front mount (tear drop),	each	21A2624
12	Poly front mount (tear drop),	each	SPDSP678FR
13	Front tower mounting bolt,	each	21A2596
14	Washer - tower mounting bolt	each	53K3755
15	Tower bolt round bush,	each	KGE100050
	Tower to body oval pad,	each	KGE100060
15	Tower bolt round bush - plastic,	each	21A2597P
15	Poly top washer & bush	kit	SPDSP668A
15	Nylon round top washer & bush	kit	MSLMS0529
15	10 piece alloy bush	kit	SPDSP601
16	Bolt - subframe mounting to body	each	GHF201
17	Rubber rear mount,	each	21A2599
17	Poly rear mount,	each	SPDSP679FR
17	Solid rear mounts,	pair	MSLMS0530
18	Towing eye - late spec (replaces bolt)	each	KPU100160
19	Nut - towing eye 3/8" UNF	each	GFK3323
20	Towing eye (replaces bolt),	each	21A1241
