Name: Timing Chain Tensioner Pad A+
SKU: 12G2621OE
Price: 7.644001 GBP
Availability: InStock

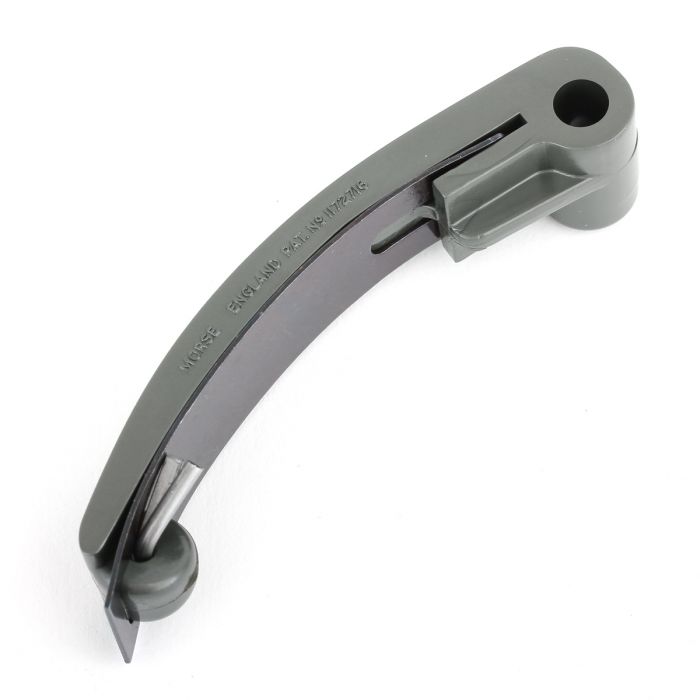

Timing chain tensioner pad used on the simplex timing gear set up for Mini A+ (Plus) Engines. This part should be replaced every time the chain is replaced to keep noise and rattle to a minimum.

A+ engines were fitted to:

Mini 998cc - 1979 onwards
Mini 1100cc - 1979 onwards
Mini 1275cc - 1974 onwards

Buy top quality Classic Mini Simplex timing spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Engine front bearer plate	A +	12G2626
2	Gasket - front plate	A series	12G619B
2	Gasket - front plate	A +	GUG705554GM
3	Set Screw - front plate to bearing cap	Simplex gears	53K2016
3	Set Screw - front plate to bearing cap	Duplex gears	CMZ407
4	Washer		GHF321
5	Camshaft locating plate		TAM2014
6	Set Screw - front plate to crankcase		GHF117
7	Shakeproof Washer		GHF321
8	Simplex Camshaft Gear		12G4337
8	Duplex Camshaft Gear		12G1397
9	Woodruff Key - camshaft gear		WKN505
10	Lock Washer - camshaft		2A759
11	Nut - camshaft		6K629
12	Simplex Timing Chain		3H2127
	Duplex Timing Chain		2H4905
13	Chain Tensioner Pad		12G2621OE
14	Pivot Pin - chain tensioner		12G2629
15	Mounting Plate - chain tensioner		12G2628
16	Set Screw - tensioner bracket to crankcase		GHF120
17	Spring Washer		GFK1125
18	Washer		GFK1114
19	Timing cover 1275cc - (with oil separator)	'90 on	LJR10168
20	Oil Seal - timing cover		88G561
	Oil Seal - timing cover		88G561OE
21	Timing cover gasket - 10 bolt	A Series	12A956B
21	Timing cover gasket - 11 bolt	A+	12G2625
22	Set Screw - timing cover to plate		SH604031
23	Washer		WC106041
24	Spring Washer		GFK1124
25	Set Screw - timing cover, plate, crankcase		GHF120
26	Spring Washer		GFK1125
27	Washer		GFK1114
28	Set Screw - timing cover to plate		GHF120
30	Spring Washer		GFK1125
31	Washer		GFK1114
29	Nut - cover to front plate		GHF201
