12G1397

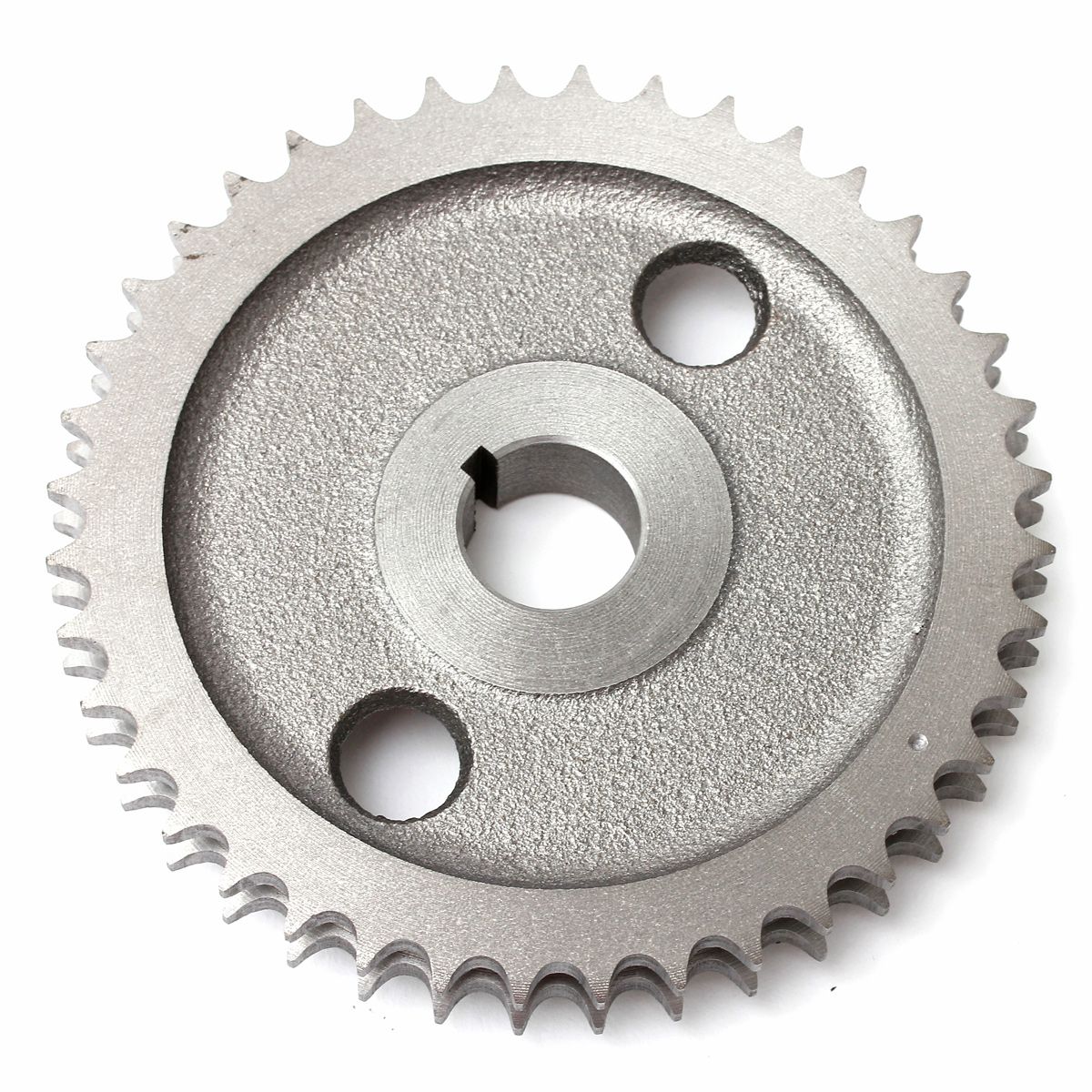

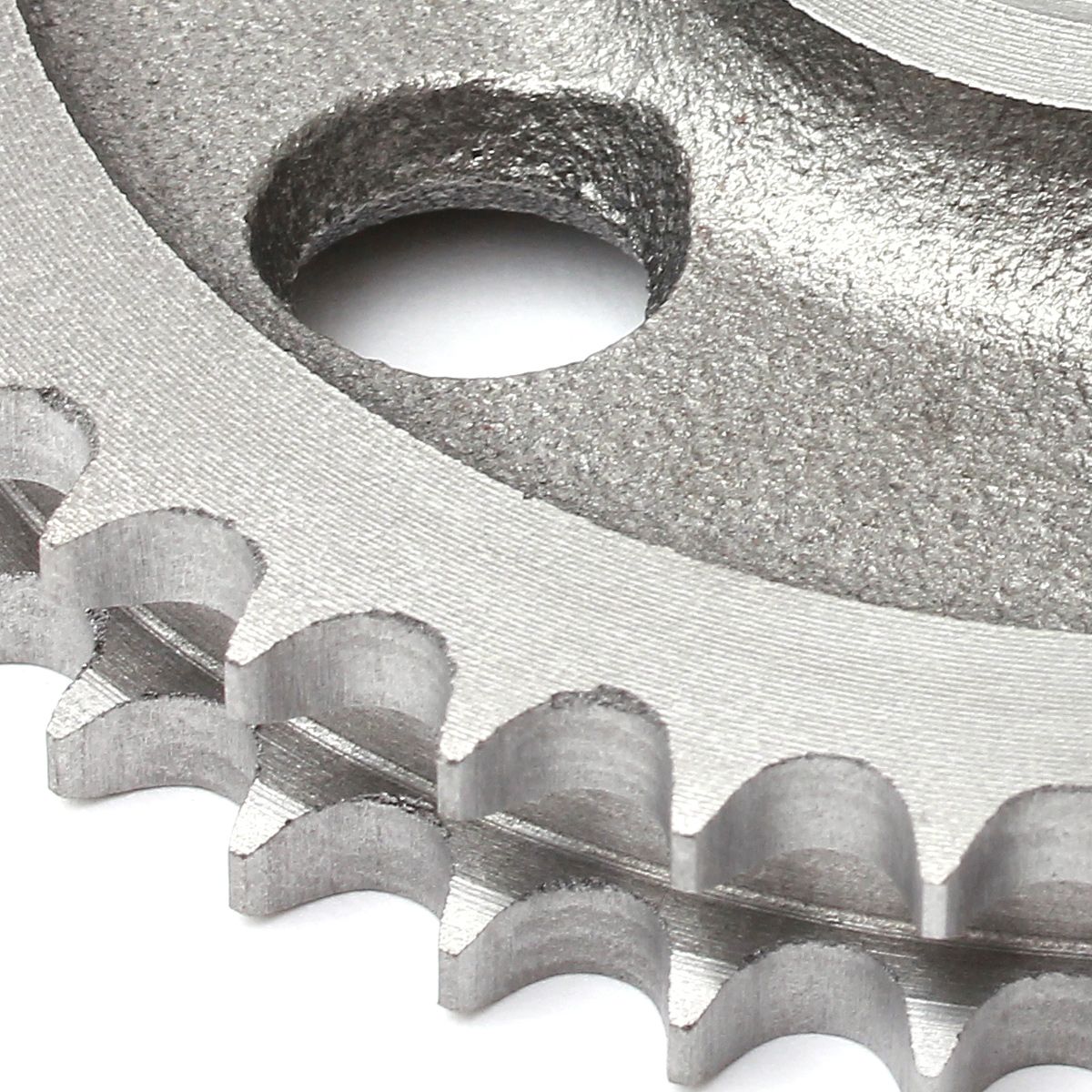

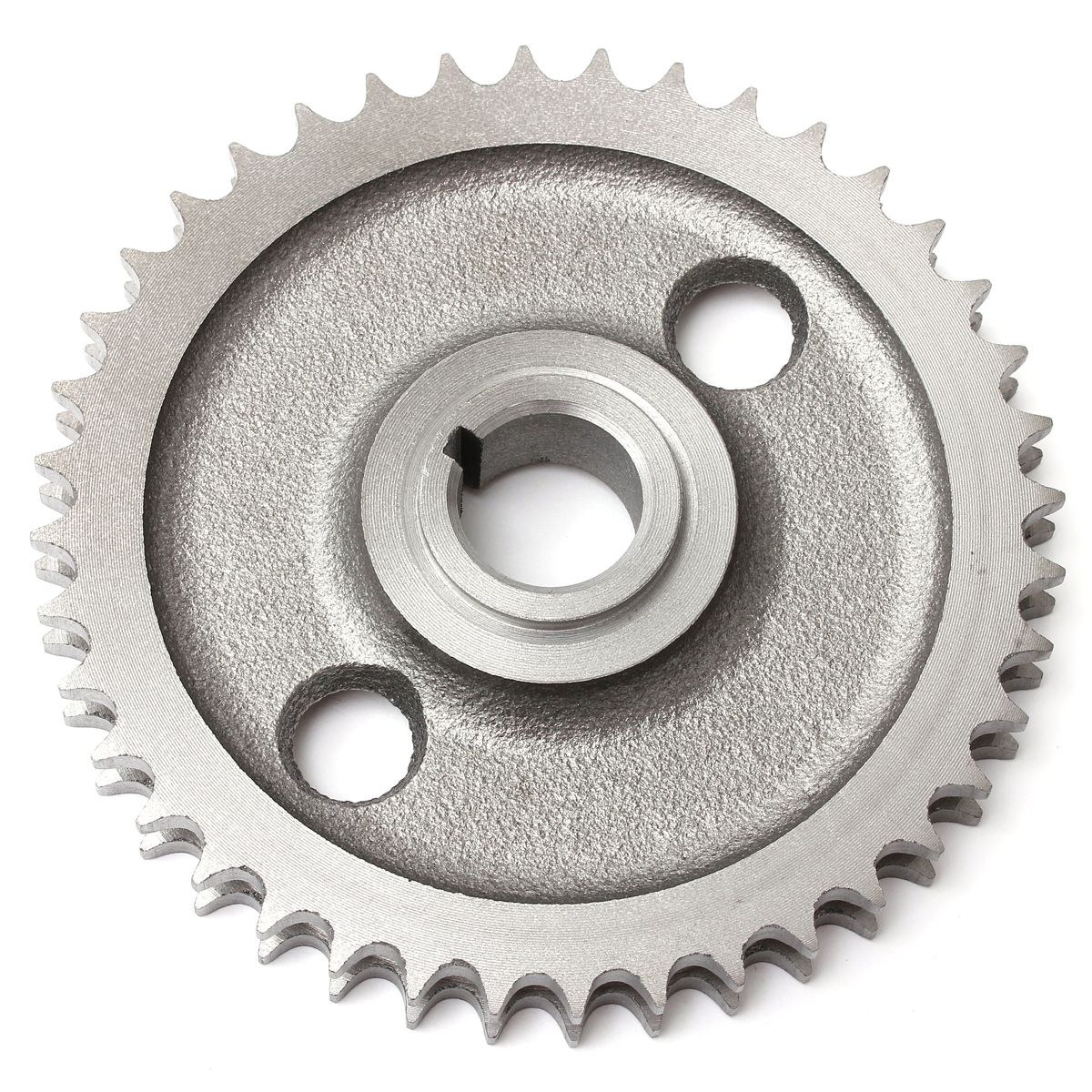

Camshaft Duplex Timing Gear

In stock
Special Price £23.29 £19.41 Regular Price £24.00
Be the first to review this product
Camshaft duplex timing gear
Add to Wish List Add to Compare
Camshaft Duplex Timing Gear
Image Image Image

Details

Camshaft Duplex Timing Gear

Find all related parts with our Easy Parts Finder


No.
Description
Notes
Part No.
1
Engine front bearer plate
A +
12G2626
2
Gasket - front plate
A series
12G619B
2
Gasket - front plate
A +
GUG705554GM
3
Set Screw - front plate to bearing cap
Simplex gears
53K2016
3
Set Screw - front plate to bearing cap
Duplex gears
CMZ407
4
Washer

GHF321
5
Camshaft locating plate

TAM2014
6
Set Screw - front plate to crankcase

GHF117
7
Shakeproof Washer

GHF321
8
Simplex Camshaft Gear

12G4337
8
Duplex Camshaft Gear

12G1397
9
Woodruff Key - camshaft gear

WKN505
10
Lock Washer - camshaft

2A759
11
Nut - camshaft

6K629
12
Simplex Timing Chain

3H2127
Duplex Timing Chain

2H4905
13
Chain Tensioner Pad

12G2621OE
14
Pivot Pin - chain tensioner

12G2629
15
Mounting Plate - chain tensioner

12G2628
16
Set Screw - tensioner bracket to crankcase

GHF120
17
Spring Washer

GFK1125
18
Washer

GFK1114
19
Timing cover 1275cc - (with oil separator)
'90 on
LJR10168
20
Oil Seal - timing cover

88G561
Oil Seal - timing cover

88G561OE
21
Timing cover gasket - 10 bolt
A Series
12A956B
21
Timing cover gasket - 11 bolt
A+
12G2625
22
Set Screw - timing cover to plate

SH604031
23
Washer

WC106041
24
Spring Washer

GFK1124
25
Set Screw - timing cover, plate, crankcase

GHF120
26
Spring Washer

GFK1125
27
Washer

GFK1114
28
Set Screw - timing cover to plate

GHF120
30
Spring Washer

GFK1125
31
Washer

GFK1114
29
Nut - cover to front plate

GHF201
