Name: OE Brake Master Cylinder - Mini 1980-88
SKU: GMC227
Price: 129.540001 GBP
Availability: InStock

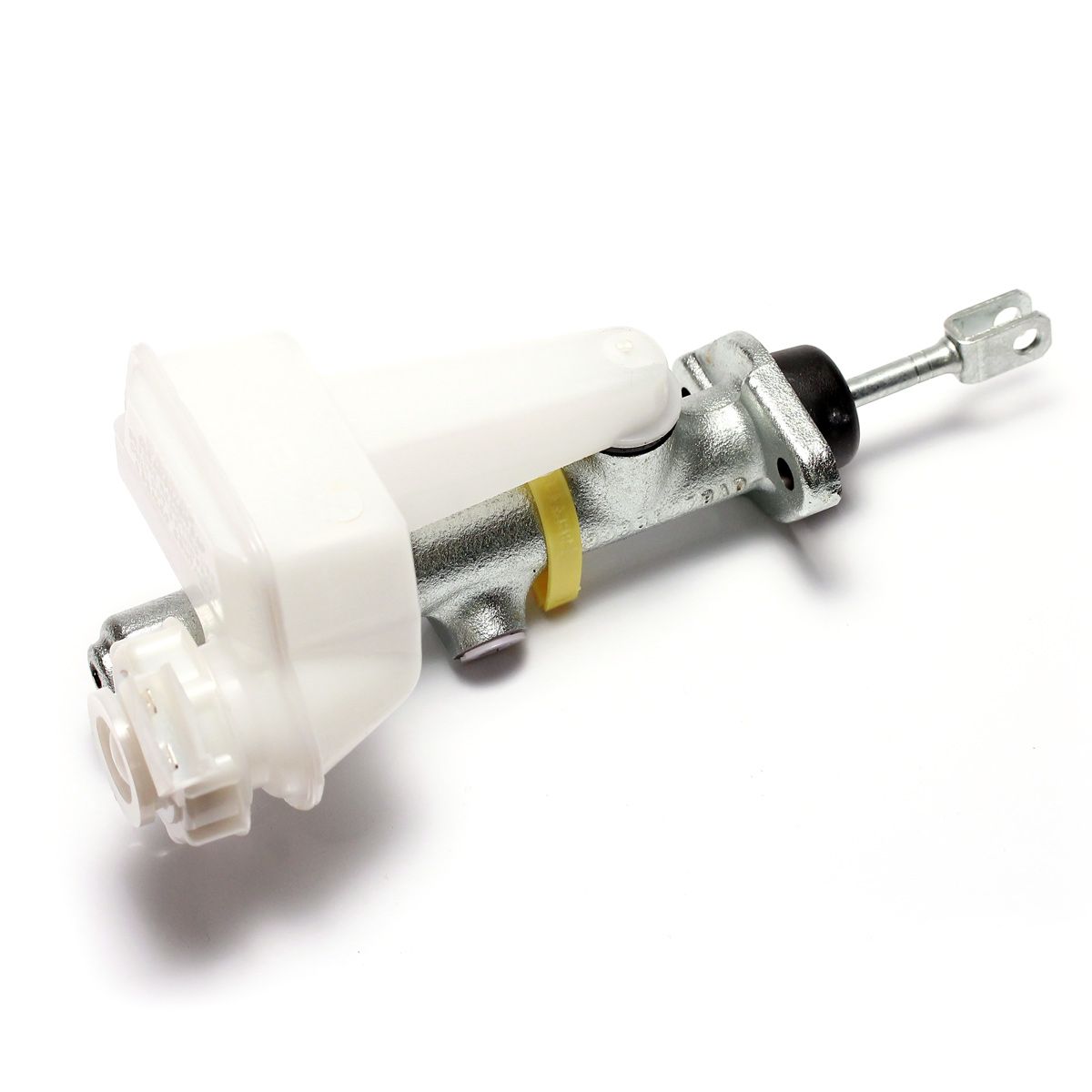

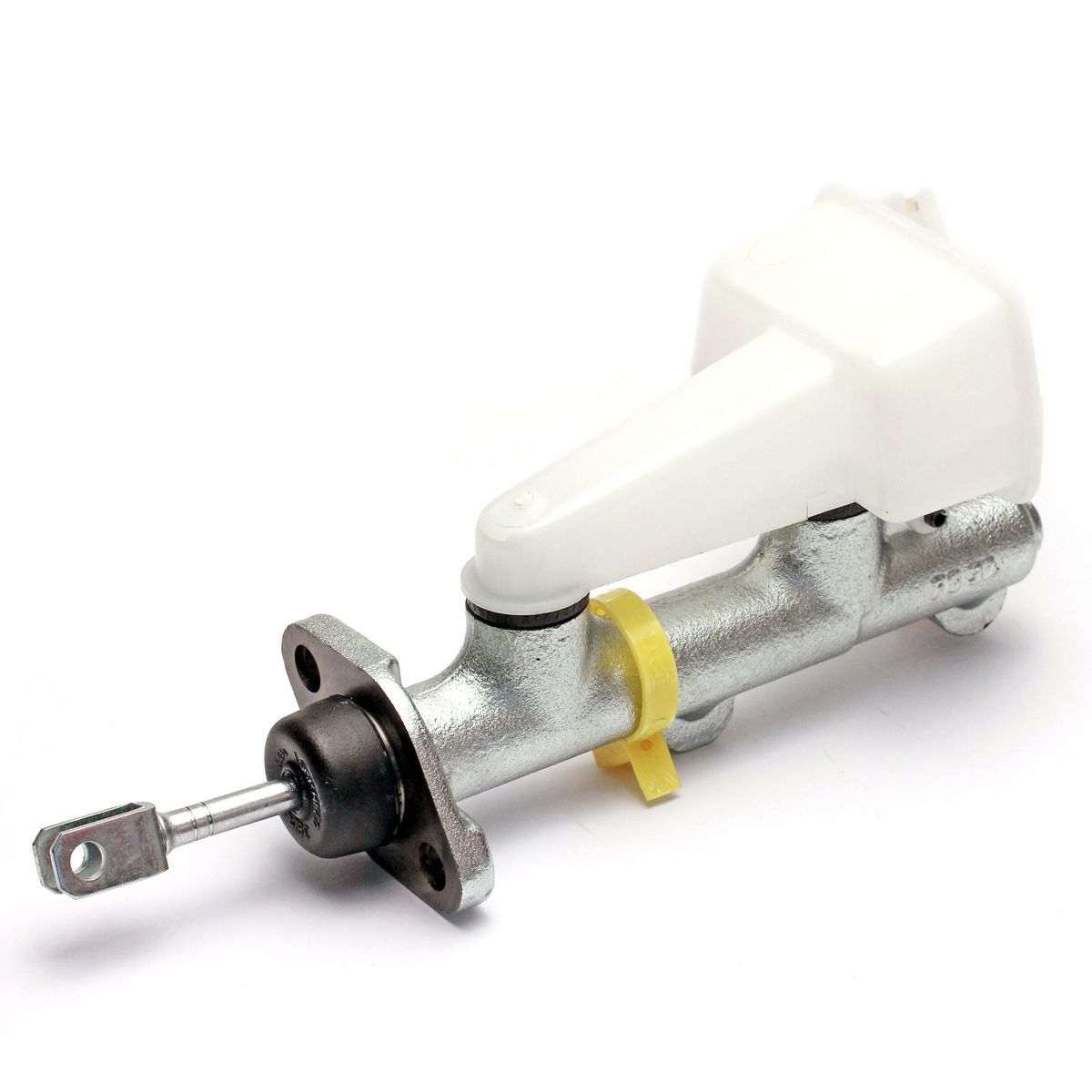

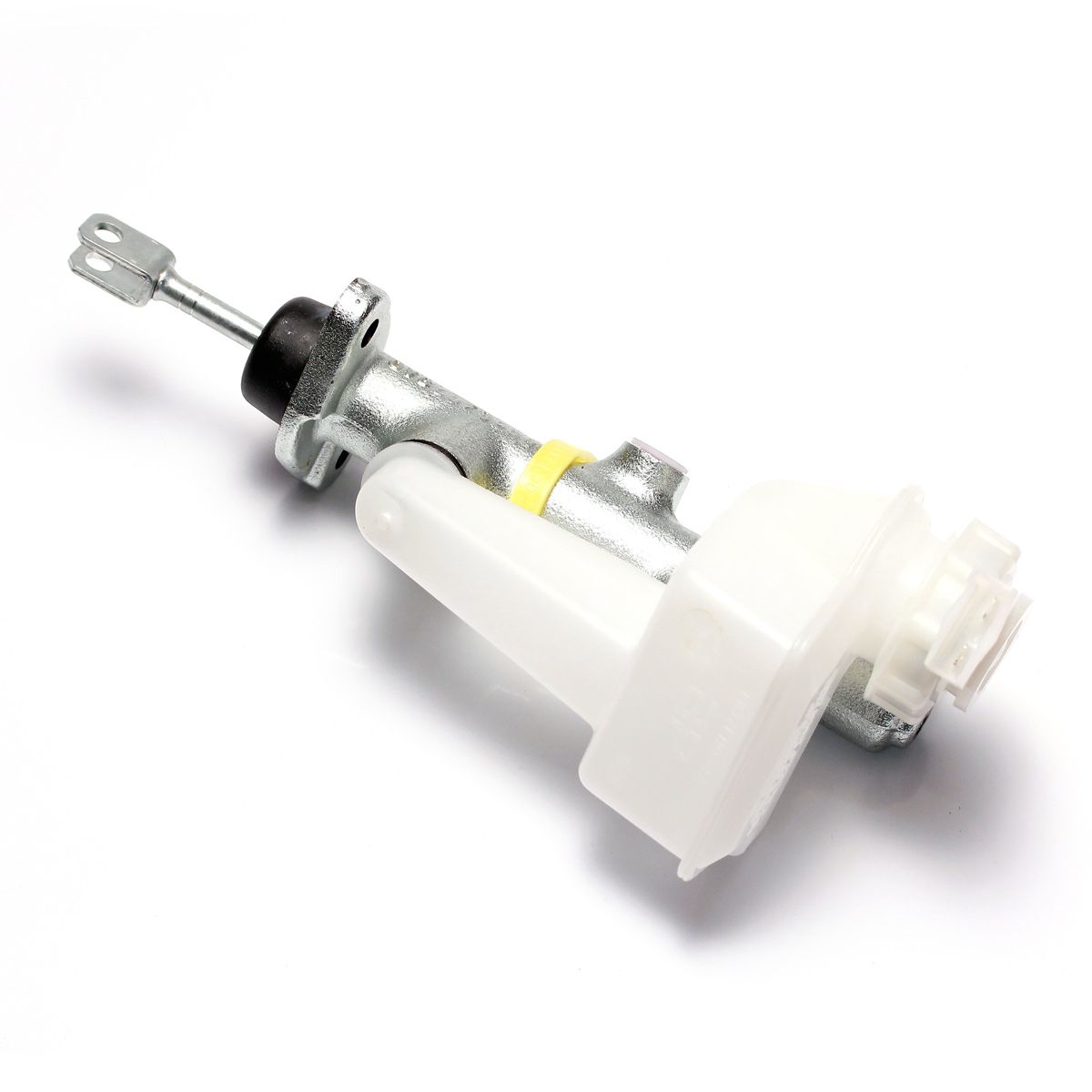

Genuine AP brake master cylinder for the Mini front/rear split dual line system. This stepped bore master cylinder was originally fitted from 1985-88 and can be identified by a yellow tag around the cylinder body. Pre 1985 front/rear split master cylinders are marked with a black tag,

The GMC227 replaces all previous front/rear split master cylinders but will require a brake pipe adaptor kit to fit it to pre '85 Mini's. The adaptor kit is BAU5654 for RHD cars and BAU5655LHD for LHD cars and contains new pipes with the correct 10mm and 12mm unions used on this master cylinder.

If you are fitting a new brake master cylinder to your Mini you may also need,

31G840 - Dual line master cylinder gasket
ALA6505 - Master cylinder mounting plate
MCR11.24.04.05 - Master cylinder mounting plate gasket
CLZ512 - Clevis pin
CAS1704 - Castrol React performance brake fluid

Buy top quality Classic Mini brake spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Yellow tag, '85 on (front/rear split) pre servo		GMC227
1	Master Cylinder - Green tag, with servo	- '89 on	GMC90376
1	Conversion Kit - to fit a GMC227 master cylinder to all pre		BAU5654
	85 Mini with front rear split brake system. Original master cylinders are no longer available - GMC159 & GMC160	NLA	BAU5654LHD
2	Cap includes Switch for GMC227 / GMC90376		GRK6009
3	Repair kit	GMC167	GRK1002
3	Repair kit	GMC195	GRK1016
3	Repair kit	GMC159/160	GRK1019
3	Seal repair kit	GMC227	GRK1035
3	Seal repair kit	GMC90388	GRK1032
	Master Cylinder - Square reservoir for split diagonal		GMC167
4	Master cylinder gaskets (dual line)		31G840
4	Master cylinder gaskets (single line)		31G279
5	Nut - cylinder to bracket		GHF201
6	Spring Washer - cylinder to bracket		GFK1125
7	Limiter valve, bulkhead fitment	'78 on	FAM7821
8	Washer-spring-bolt		GFK1124
9	Bolt-valve to dash member		BT604161
	Master Cylinder - Standard, plastic tank type	- pre '76	GMC171
10	Master Cylinder - tin tank type	Cooper S/GT	GMC172OE
10	Master Cylinder - Standard, Tin tank type	- pre '76	GMC171OE
11	Repair kit (2 x ring seals)	GMC171/172	BAU1247
11	Repair kit (1 x ring, 1 x cup seal)	early GMC171/172	GRK1028
12	Brake & Clutch Master Cylinder Cap for GMC171/172		513123A
13	Reservoir extension - white plastic (tin tank only)		BHA4661
14	Clevis Pin - master cylinder to pedal		CLZ512
