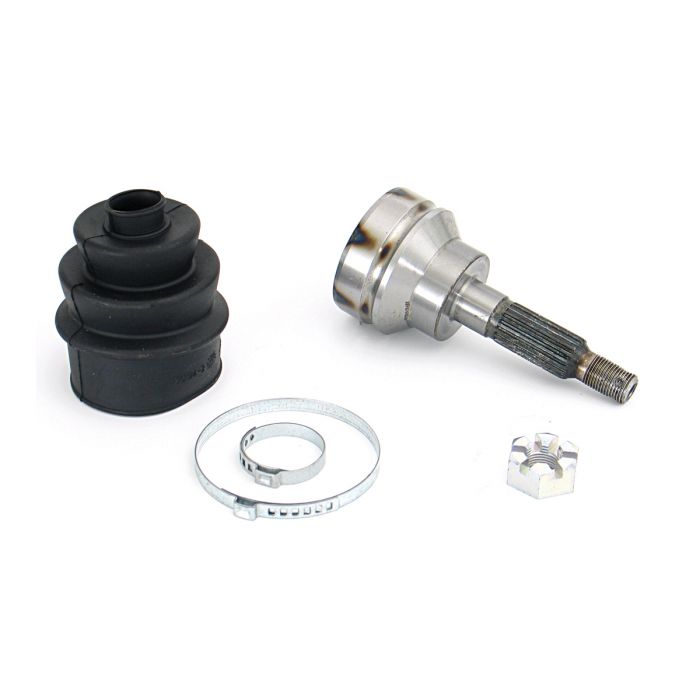

Brand new replacment outer CV joint, complete with grease, rubber boot, metal fixing straps, drive shaft spring clip and drive flange nut.

To fit Mini's with front drum brake assemblies or Cooper 997/998 7" disc brake assemblies.

For Minis fitted with 7.5" or 8.4" disc brake assemblies use GCV1013.

When replacing the cv joint it is also recommended to renew the washer behind the castle nut, 2A7323.

Buy top quality Classic Mini spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1/2	Pot Joint type Driveshafts competition spec - pair		MS3341
1/2	Hardy Spicer type Driveshafts competition spec - pair		MS3341H/S
1/2	Group A Driveshafts - Heavy Duty, Hardened EN24 steel	NLA	MS3340
4	Disc type CV joint inc boot & clips		GCV1013
4	Drum type CV joint inc boot & clips		GCV1105
5	Outer CV boot kit		GSV1185
6	CV grease sachet		AKF1457
7	Circlip - Driveshaft to outter CV Joint		37H3746
8	Inner pot joint including boot, each		ADU4378
9	Rubber drive coupling inc U bolts, each		GCD101
10	Circlip - Driveshaft to inner CV Pot Joint		37H8706
12	Inner CV boot kit (pot joint)		GSV1073
13	Hardy Spicer drive coupling, each		27H7880
13	Hardy Spicer output flange, each		22A1152
	Hardy Spicer repair joint		GUJ101
14	Driveshaft small boot (Hardy Spicer & Rubber)		GSV1192
