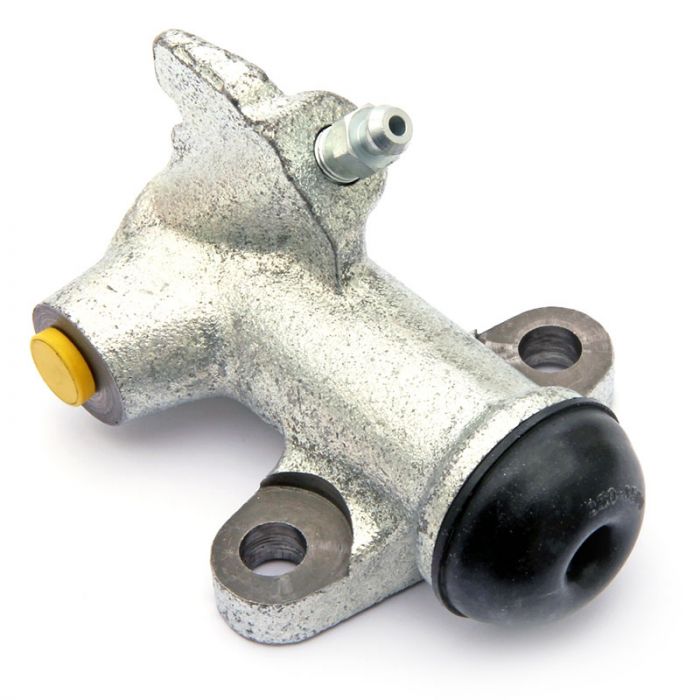

Name: Clutch Slave Cylinder - Verto clutch 1982-2001
SKU: GSY118R
Price: 31.788001 GBP
Availability: InStock

Replacement clutch slave cylinder fits all verto type clutch systems, 1982-2001.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Cover - clutch		AHU1106
2	Set Screw - cover to housing		DAM7755
3	Spring Washer - cover screw		GFK1125
9	Cover - timing hole	NLA	2A3635
7	Set Screw - timing hole cover		SH604041
8	Spring Washer - timing cover screw		GFK1124
29	Flywheel Housing	A+ carburettor with breather	DAM6259
29	Flywheel Housing	Injection	TRD10015
35	Seal - oil - clutch		13H2934
35	Seal - oil - clutch		LUF10005
30	Gasket - housing to gearbox case		22A2237B
32	Spring Washer - screw housing		GFK1125
36	Bolt - housing to cylinder block		DAM7758
31	Set Screw - housing to cylinder block		DAM7753
38	Locktab Washer		22A1762
34	Locktab Washer		22A1761
33	Locktab Washer	NLA	2A3521
40	Nut - flywheel housing stud		GHF201
41	Spring Washer		GFK1125
37	Locktab Washer		22A1241
39	Dowel Reataining Plate	NLA	22A1299
5	Set Screw - Clutch Arm Adjustment		GFK5180
10	Lock Nut - Clutch Arm Adjustment Screw		FNZ604
17	Clutch arm - long, pre verto		22A2204
17	Clutch arm - short, verto		DAM5355
15	Washer - plain		GFK1115
19	Push rod - arm to cylinder - pre verto & verto models		13H396
14	Spring Anchor - clutch arm end		2A3601
15	Washer - plain		GFK1114
12	Return spring - Clutch arm - pre verto		1G5999
11	Spring Anchor - cylinder end		2A3600
13	Clevis Pin - Arm to pushrod		CLZ518
4	Clevis Pin - Verto Clutch arm to flywheel housing		CLZ628
16	Split Pin - for clevis pins		PS104221
22	Slave cylinder - pre verto type		GSY110
22	Slave cylinder - verto type		GSY118R
18	Seal repair kit for GSY110		GRK4008
18	Seal repair kit for GSY118		GRK4001
23	Bleed Screw		3H2428
21	Screw - clutch cylinder to plate		GFK5191
20	Spring Washer		MSLMS0047
25	Bracket for verto slave cylinder		DAM5992
24	Set Screw - bracket to flywheel housing		GHF165
28	Distance Piece		21A1108
26	Set Screw - bracket to distance piece and clutch cover		SH604141
