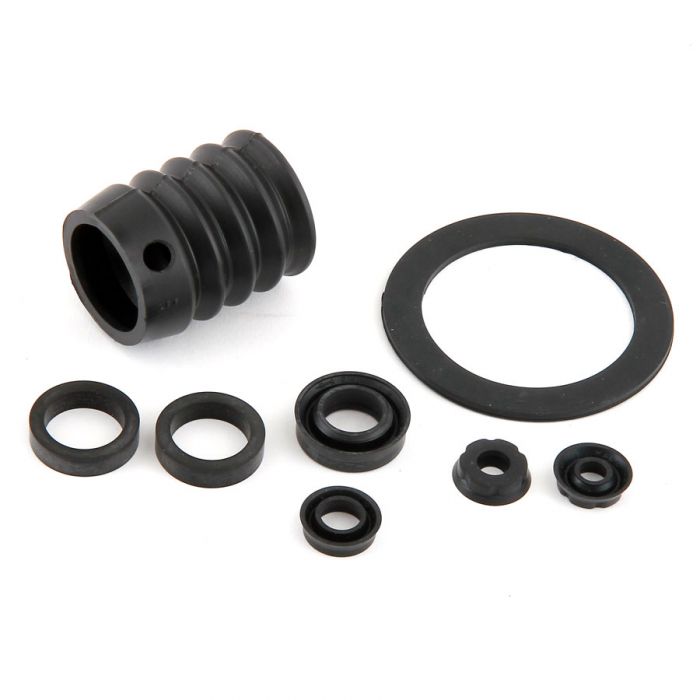

Repair kit to suit GMC159 and GMC160 early type dual brake master cylinders.

GMC159 master cylinder was fitted to Minis from 1969 to 1975 with the front/ rear split brake system.

GMC160 master cylinder was fitted to Minis from 1974 to 1975 with the split diagonal brake system.

Both brake master cylinders can be identified by a round reservoir.

Buy top quality Classic Mini brake parts and Mini spares from Mini Sport, the worlds premier online Mini store.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Yellow tag, '85 on (front/rear split) pre servo		GMC227
1	Master Cylinder - Green tag, with servo	- '89 on	GMC90376
1	Conversion Kit - to fit a GMC227 master cylinder to all pre		BAU5654
	85 Mini with front rear split brake system. Original master cylinders are no longer available - GMC159 & GMC160	NLA	BAU5654LHD
2	Cap includes Switch for GMC227 / GMC90376		GRK6009
3	Repair kit	GMC167	GRK1002
3	Repair kit	GMC195	GRK1016
3	Repair kit	GMC159/160	GRK1019
3	Seal repair kit	GMC227	GRK1035
3	Seal repair kit	GMC90388	GRK1032
	Master Cylinder - Square reservoir for split diagonal		GMC167
4	Master cylinder gaskets (dual line)		31G840
4	Master cylinder gaskets (single line)		31G279
5	Nut - cylinder to bracket		GHF201
6	Spring Washer - cylinder to bracket		GFK1125
7	Limiter valve, bulkhead fitment	'78 on	FAM7821
8	Washer-spring-bolt		GFK1124
9	Bolt-valve to dash member		BT604161
	Master Cylinder - Standard, plastic tank type	- pre '76	GMC171
10	Master Cylinder - tin tank type	Cooper S/GT	GMC172OE
10	Master Cylinder - Standard, Tin tank type	- pre '76	GMC171OE
11	Repair kit (2 x ring seals)	GMC171/172	BAU1247
11	Repair kit (1 x ring, 1 x cup seal)	early GMC171/172	GRK1028
12	Brake & Clutch Master Cylinder Cap for GMC171/172		513123A
13	Reservoir extension - white plastic (tin tank only)		BHA4661
14	Clevis Pin - master cylinder to pedal		CLZ512
