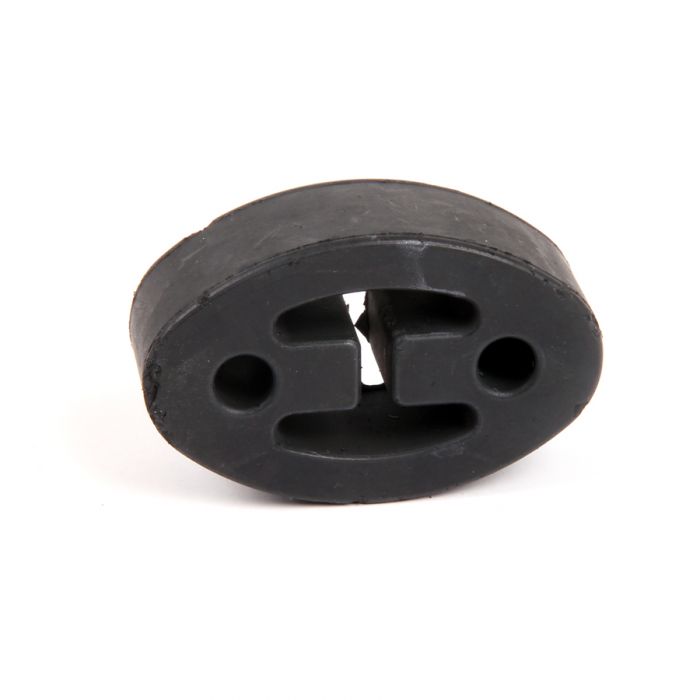

Mini late type exhaust rubber hanger. Fits between the hanging arm on the exhaust and the hanging arm on the rear subframe. Used as standard on Minis from 1991 onwards.

Earlier cars can be converted to use this mounting system using the bolt on hanging arms MSLPM48 and MSLPM49. Many after market stainless steel exhausts are designed to use this type of mount.

Buy top quality standard and uprated Mini exhaust parts from Mini Sport, the world's premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

	850cc/998cc/1098cc/1275cc System	single silencer	AN292E
1a	Standard Rover Carb Exhaust Downpipe 1990-1994	HS4/HIF38	GEX12052
1b	Cooper 1.3 Carb with CAT 90-91 (Twin Pipe)	NLA	GEX12017
2	998cc/1098cc/1275cc System	twin silencer	AN374J
9	Hanger - twisted support strap	rear	GEX7778
10	Square rubber exhaust mounting		GEX7081
11	Bobbin type rubber exhaust mounting		GEX7251
12	Clamp manifold/downpipe clamp		GEX7046
	Clamp manifold/downpipe clamp	- 1.3 '92-'94	GEX7801
13	Front Pipe to gearbox support bracket		GEX7053
	Hanger - front of the rear subframe		GEX7082
14	Exhaust mounting bracket - rear		GEX7084
	Gearbox - exhaust support (mounting) bracket - early type		GEX7088
16	Rubber exhaust hanger		GEX7661
17	Nut - 5/16" UNF		GHF201
	Flat Washer - 5/16"		GFK1114
18	Spring Washer - 5/16"		GFK1125
19	Set Screw 5/16" UNF x 1"		GFK5185
	45mm Exhaust U clamp	each	LEX021-50
	48mm Exhaust U clamp	each	LEX022-50
	51mm Exhaust U clamp	each	LEX023-50
	54mm Exhaust U clamp	each	LEX024-50
	Manifold - standard gasket		AJM601
	Manifold - large port gasket		C-AHT381
	Manifold - injection exhaust gasket		LKJ100580EVA
	Exhaust Sealing Paste - Bosal	NLA

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

	850cc/998cc/1098cc/1275cc System	single silencer	AN292E
	Standard Rover Carb Exhaust Downpipe 1990-1994	HS4/HIF38	GEX12052
	Cooper 1.3 Carb with CAT 90-91" (Twin Pipe)>	NLA	GEX12017
2	998cc/1098cc/1275cc System	twin silencer	AN374J
9	Hanger - twisted support strap	rear	GEX7778
10	Square rubber exhaust mounting		GEX7081
11	Bobbin type rubber exhaust mounting		GEX7251
12	Clamp manifold/downpipe clamp		GEX7046
	Clamp manifold/downpipe clamp	- 1.3 '92-'94	GEX7801
13	Front Pipe to gearbox support bracket		GEX7053
	Hanger - front of the rear subframe		GEX7082
14	Exhaust mounting bracket - rear		GEX7084
	Gearbox - exhaust support (mounting) bracket - early type		GEX7088
16	Rubber exhaust hanger		GEX7661
17	Nut - 5/16" UNF		GHF201
	Flat Washer - 5/16"		GFK1114
18	Spring Washer - 5/16"		GFK1125
19	Set Screw 5/16" UNF x 1"		GFK5185
	45mm Exhaust U clamp	each	LEX021-50
	48mm Exhaust U clamp	each	LEX022-50
	51mm Exhaust U clamp	each	LEX023-50
	54mm Exhaust U clamp	each	LEX024-50
	Manifold - standard gasket		AJM601
	Manifold - large port gasket		C-AHT381
	Manifold - injection exhaust gasket		LKJ100580EVA
	Exhaust Sealing Paste - Bosal

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1a	1.3i Mini & Cooper, SPi or MPi '91-'01	twin pipe	GEX12043
4	Mini 1.3 Carb or Injection with CAT '92-'01	twin silencer	AN583C
5	Mini Catalytic Converter	replacement	KLA370056
	Mini Catalytic Converter - type approved	replacement	KLA311146
	Lambda Sensor	OE Specification	MHK10004OE
	Lambda Sensor	Genuine	MHK10004
6	Gasket - catalyst		GEX7761
7	Gasket - injection downpipe		GEX7779
	Manifold - standard gasket		AJM601
	Manifold - large port gasket		C-AHT381
	Manifold - injection exhaust gasket		LKJ100580EVA
	Exhaust Sealing Paste - Bosal
15	Gearbox - exhaust support (mounting) bracket		GEX7526
16	Rubber exhaust hanger		GEX7661
	45mm Exhaust U clamp	each	LEX021-50
	48mm Exhaust U clamp	each	LEX022-50
	51mm Exhaust U clamp	each	LEX023-50
	54mm Exhaust U clamp	each	LEX024-50
	Exhaust conversion hanger rod (late type), front edge	Bolt On	MSLPM48
	Exhaust conversion hanger rod (late type), rear edge	Bolt On	MSLPM49
	Exhaust conversion hanger rod (late type), front edge	Weld In	KHU10011
	Exhaust conversion hanger rod (late type), rear edge	Weld In	KHU10012
