EDP9317

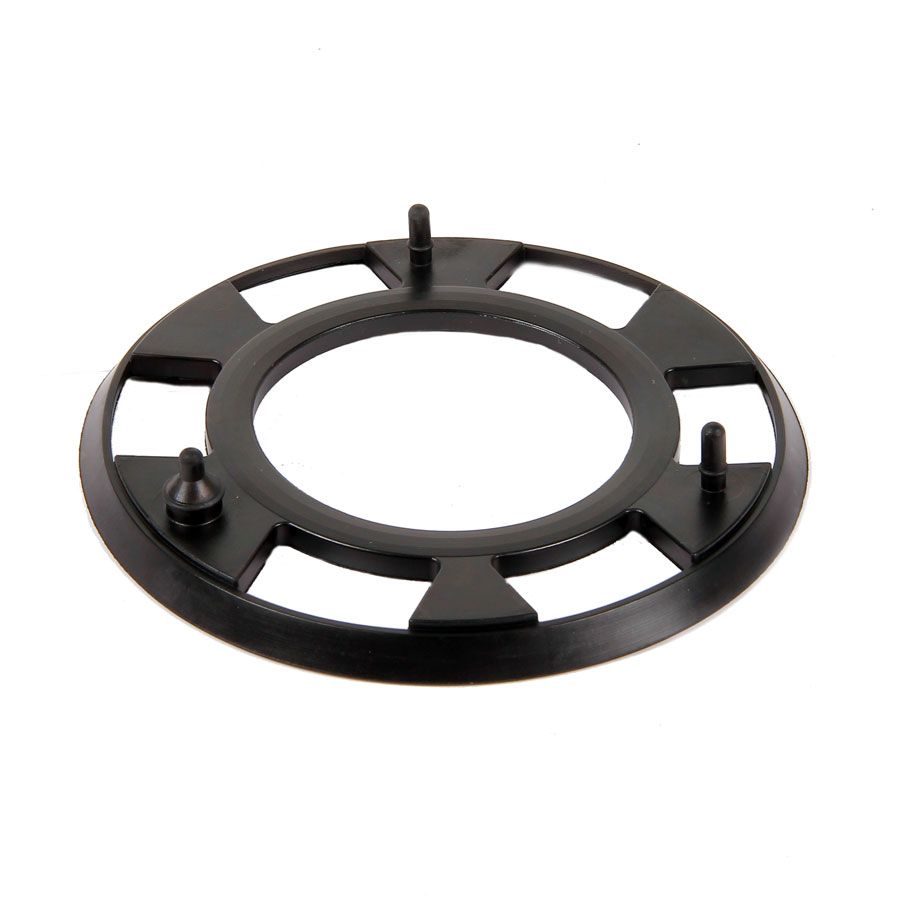

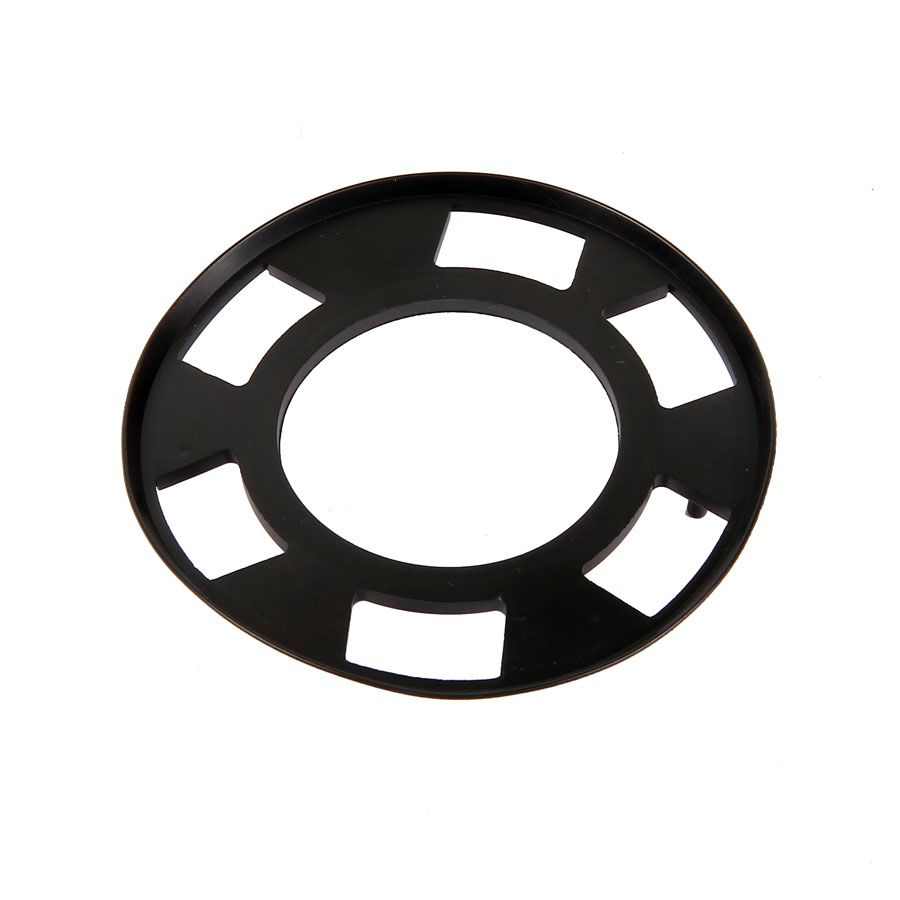

Sealing Ring - Mini Spi/Mpi Fuel Pump

In stock
£26.88 £22.40
Be the first to review this product
Fuel pump to fuel tank gasket sealing ring for the Mini SPI and MPI models.
Add to Wish List Add to Compare
EDP9317 Mini Sealing Ring - Mini Spi/Mpi Fuel Pump
EDP9317 Mini Sealing Ring - Mini Spi/Mpi Fuel Pump EDP9317 Mini Sealing Ring - Mini Spi/Mpi Fuel Pump

Details

Fuel pump to fuel tank gasket sealing ring for the Mini SPI and MPI models.

WFX100810 - SPI and MPI fuel pump

WFE106090 - Mini Injection fuel tank

XNB100380 - Mini Injection fuel level sender unit

Buy top quality Classic Mini fuel pump spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder


No.
Description
Notes
Part No.
1
7.5 gallon fuel tank Mini carb models '74-'90
LH
ARP1043
1
Injection fuel tank
LH
WFE106090
1
5.0 gallon fuel tank - steel
RH
21A2183
1
Van, Traveller, Pick-up fuel tank

21A291
2
Seal - tank - filler neck

2A2069
22
Fuel tank rubber neck grommet - to '96

14A7057
22
Fuel tank rubber neck grommet - MPi

WGG100010
17
Short tank strap

2A2231
17
Long tank strap

2A2226

One Piece Tank Strap (diagonal fitment) - 7.5 Gal tank

21A2838
3
Van/estate sender unit

AAU8340
3
Carb type fuel sender unit

XNB10007
3
Injection fuel sender unit ('92-'01)

XNB100380
4
Mini Injection Fuel Pump - SPi and MPi

WFX100810
5
Seal - fuel pump to tank - SPi and MPi

EDP9317
6
Locking Ring for Fuel Tank Sender Unit

ARA1501
7
Sealing rubber ring for 7.5 gallon tanks

ARA1502
7
Cork Gasket for AAU8340

GUG705711GM

Screws for Van Tank sender unit (6 required)

53K165
2
Seal - tank - filler neck

2A2069
8
Filler Cap Assembly - Non Locking - Black

WLD10027
8
Filler Cap Assembly - Non Locking - Chrome

WLD100350
9
Washer - Sealing

21A2109
10
Filler Cap Assembly - Locking - Chrome

WLD100660
11
Washer - sealing

21A2109
12
Pipe - vent - fuel tank (765mm long approx)

CRC7575
18
Screw - retaining - tank strap to floor

GHF120

Nut - retainer - tank strap to floor

346071A

Setscrew - 5/16" UNF - tank strap to bracket

13H7583
19
Washer - spring

GFK1125
20
Screw

SH605161
21
Washer - spring

GFK1125
23
Pipe - pump to tank - 233.6cm(92")
1m of Fuel Hose
37H6844M
24
Sleeve - pipe

WZV10002
25
Hose - tank to pipe - 290mm
1m of Fuel Hose
37H6844M
26
Feed hose - tank to underfloor pipe
1m of Fuel Hose
37H6844M

Injection Fuel Filter - to VIN WD169573

GFE7059

Injection Fuel Filter - to VIN WD169574

WJN101192

Fuel Filter Bracket - SPi and MPi

WJU10142

Fuel Filter Bracket - SPi and MPi - Stainless Steel

SMB160

Fuel Filter Bracket - SPi and MPi - Powder Coated

SMB161
16
RH Fuel Tank connecting Pipe

21A2331
