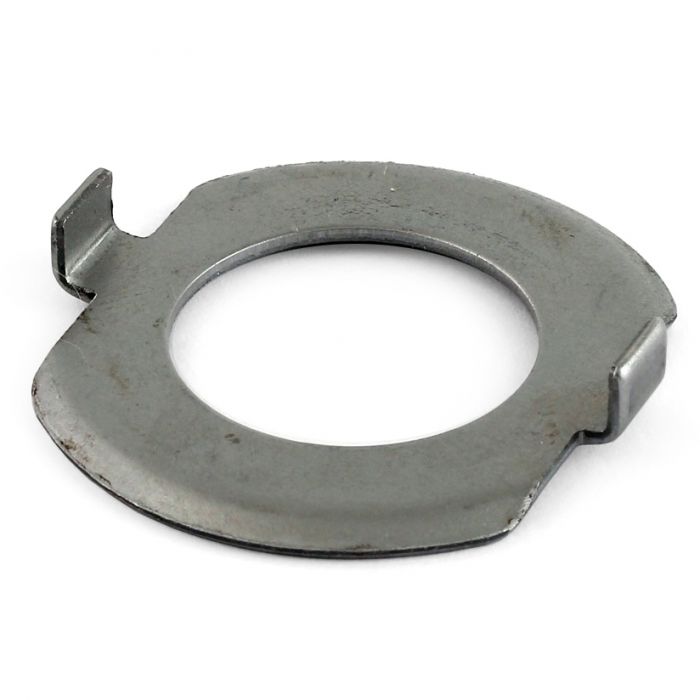

Name: Locktab - 1st Motion Shaft
SKU: DAM4000
Price: 3.276001 GBP
Availability: InStock

Locktab for 1st Motion Drive Gear (Input Gear) to First Motion Shaft.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Primary gear	- 850cc/ 1000cc/ 1100cc A series	22A1493
1	Primary gear	- 1275cc A series	22G1053
1	Primary gear	- 1000cc/ 1100cc A+	DAM8888
1	Primary gear	- 1275 A+ including injection models	DAM8890
3	Rear bush with lip - Primary Gear	all models	22G109
2	Front bush	- Primary Gear - 1275cc	DAM8889
4	Thrust washer	- 2.84-2.89mm(0.112-0.114") - 998cc	22A322
4	Thrust washer	- 2.89-2.94mm(0.114-0.116") - 998cc	22A323
4	Thrust washer	- 2.94-2.99mm(0.116-0.118") - 998cc	22A324
4	Thrust washer	- 2.99-3.04mm(0.118-0.120") - 998cc	22A450
4	Thrust washer	- 3.04-3.09mm(0.120-0.122") - 998cc	DAM4599
4	Thrust washer	- 2.84-2.89mm(0.112-0.114") - 1275cc	DAM6490
4	Thrust washer	- 2.89-2.94mm(0.114-0.116") - 1275cc	DAM6486
4	Thrust washer	- 2.94-2.99mm(0.116-0.118") - 1275cc	DAM6487
4	Thrust washer	- 2.99-3.04mm(0.118-0.120") - 1275cc	DAM6488
4	Thrust washer	- 3.04-3.09mm(0.120-0.122") - 1275cc	DAM6489
6	'C' Washer backing plate	Primary Gear	88G549
5	'C' Washer	Primary Gear	22A319
8	Idler gear	- 998cc/ 1100cc/ 1300cc A+ (37)	DAM2924
9	Thrust washer	- A+ idler gear (.130" - .131")	DAM5914
9	Thrust washer	- A+ idler gear (.132" - .133")	DAM4822
9	Thrust washer	- A+ idler gear (.134" - .135")	DAM4823
9	Thrust washer	- A+ idler gear (.136" - .137")	DAM4824
9	Thrust washer	- A+ idler gear (.138" - .139")	DAM4825
10	Nut	1st Motion Drive Gear	2A3548
11	Locktab	Holds Input Gear to 1st Motion Shaft	DAM4000
12	1st Motion Drive Gear	4 syncro A Series	22G849
12	1st Motion Drive Gear	4 syncro A+	DAM2925
13	Roller Bearing	1st Motion Shaft Support	AAU8424
14	Large Circlip	1st Motion Support Bearing	2A3643
15	Small Circlip	1st Motion Support Bearing	CCN110

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	1st Motion Shaft / 4th Gear	A series	22G1093
1	1st Motion Shaft / 4th Gear	- A +	DAM4930
	Nut	- 1st Motion Shaft	2A3548
	Lock Tab	- 1st Motion Nut	DAM4000
2	14mm 1st motion needle roller bearing		88G409
3	Bearing - 1st motion shaft	Large	ADU7619
4	Circlip	- 1st Motion shaft bearing	22G850
5	Layshaft	- 3 synchro	22A1371
5	Layshaft	- 4 synchro - A series	22G931
5	Layshaft	- A+	DAM3187
5	Layshaft Competition	A series	C-22A1738
5	Layshaft Competition	- A +	C-22A1739
6	Laygear	- 3 synchro - Cooper S	22G1100
6	Laygear	- 4 synchro - A series	22G927
6	Laygear	- A+	DAM4931
2/7	18mm 1st motion/layshaft needle roller bearing		13H9513
7	16mm layshaft needle roller bearing		88G396
8	20mm layshaft needle roller bearing		CHM141
9	Thrust Washer	- Layshaft (.124"-.126") A+	DAM3181
9	Thrust Washer	- Layshaft (.130"-.132") A+	DAM3183
10	Thrust Washer	Laygear	22G860
11	Reverse idler	Rod change type	TUB10020
12	Bush	Reverse Idler Gear	TUJ10001
13	Shaft	Reverse Idler Gear	DAM8038
14	3rd Motion Shaft	- A series - 4 synchro	22G833
14	3rd Motion Shaft	- A +	DAM7484
15	Baulk Ring		22G2033
15	Baulk Ring	Genuine	22G2033GEN
16	Sycronizer	- 3rd & 4th gear	DAM7456
17	Ball	Syncronizer	BLS107
18	Spring	Syncronizer	DAM7391
19	3rd gear	A series	22G1095
19	3rd gear	- A +	DAM4933
20	2nd/3rd gear needle roller bearing		AAU1816
21	Thrust washer	- 3rd Gear	22G947
22	Peg - locking - 2nd/ 3rd gear	all	22G843
23	Spring - locking peg	- 3rd Motion Shaft	22G154
24	2nd gear	- A+	DAM4932
26	Thrust washer	- 2nd Gear	22G839
27	Sycronizer	- 1st & 2nd gear	DAM7455
28	1st gear	- A series and A+	22G1096
29	1st gear needle roller bearing		AAU1815
30	Journal	- 1st gear	22G837
31	Bearing - 65mm double	- 3rd motion shaft	AAU1365
32	Spring Ring	- 3rd Motion Bearing retainer	ADU4992
33	Shim	- 3rd Motion Bearing retainer (.003")	GUG705645GM
34	Locating Plate	- 3rd Motion Bearing retainer	2A3581
35	Bearing retainer	- 3rd Motion - rod change	22G2726
36	Lock Tab	- 3rd Motion Bearing retainer	DAM2377
37	Bolt	- 3rd Motion Bearing retainer	SH505071
39	Lock Tab Washer	Final Drive Pinion	DAM6140
40	Nut	- 3rd Motion Shaft - A+	DAM7485
