BP102M

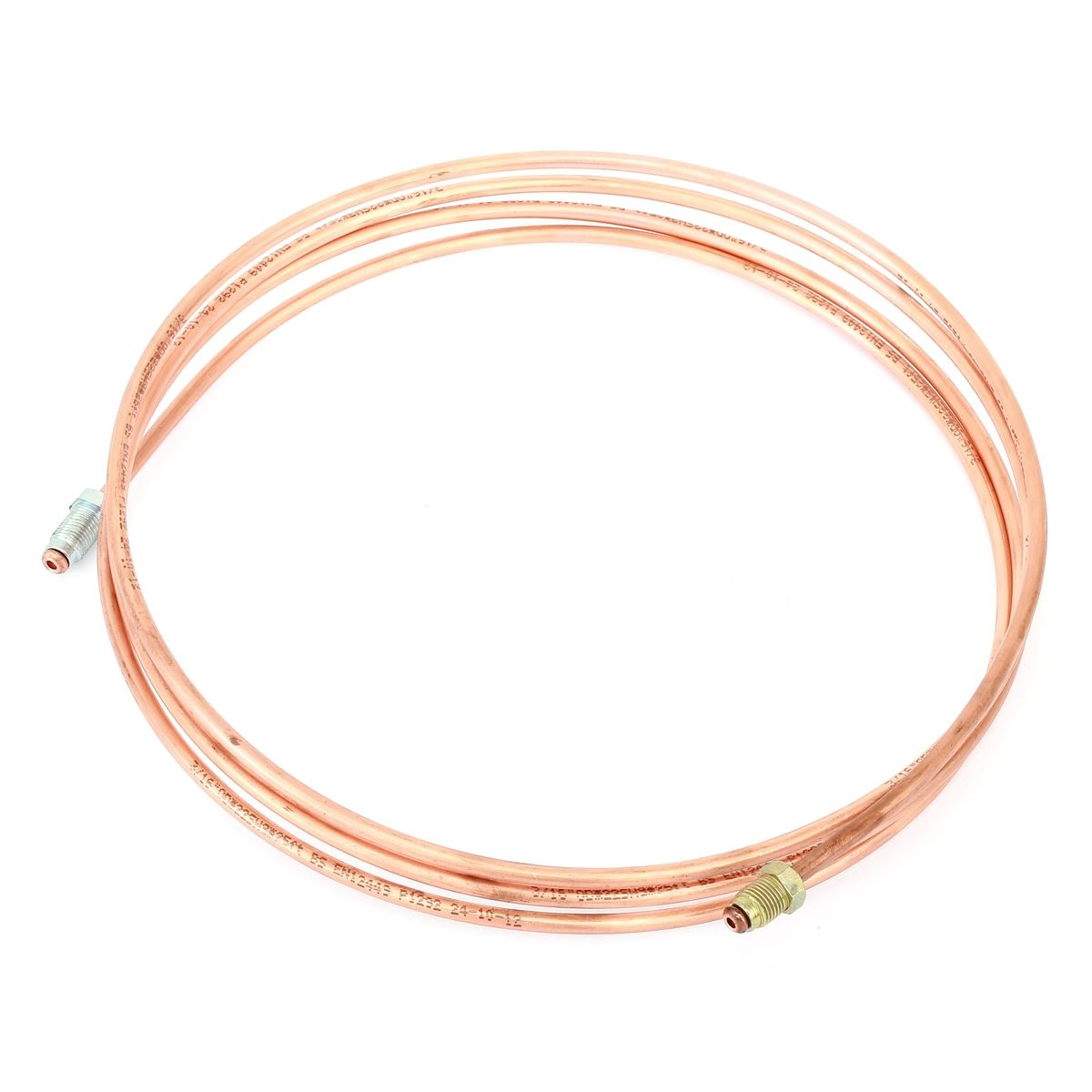

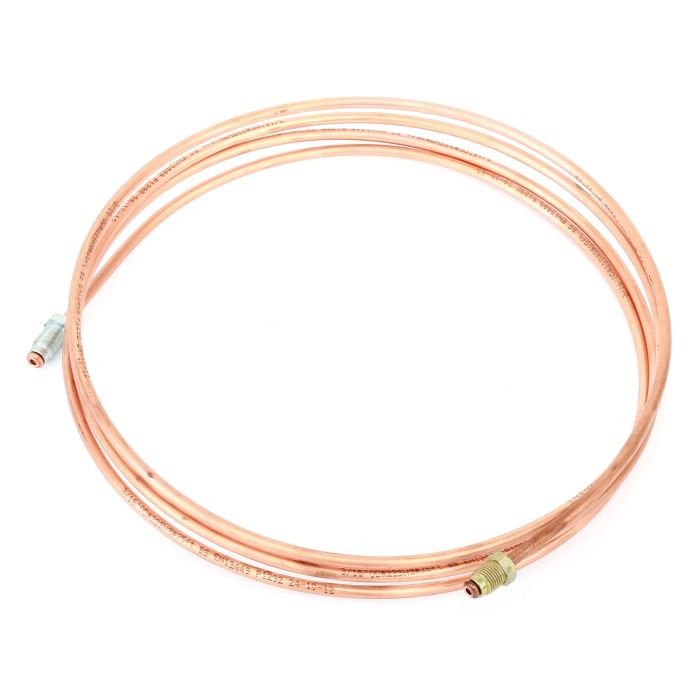

Brake Pipe - 102" (2590mm)

In stock
Special Price £25.31 £21.09 Regular Price £27.36
Be the first to review this product
102" (2590mm) brake pipe from front pressure valve to rear T piece on Mini front/rear split system without servo.
Add to Wish List Add to Compare
Brake Pipe - 102" (2590mm)
Image Image Image

Details

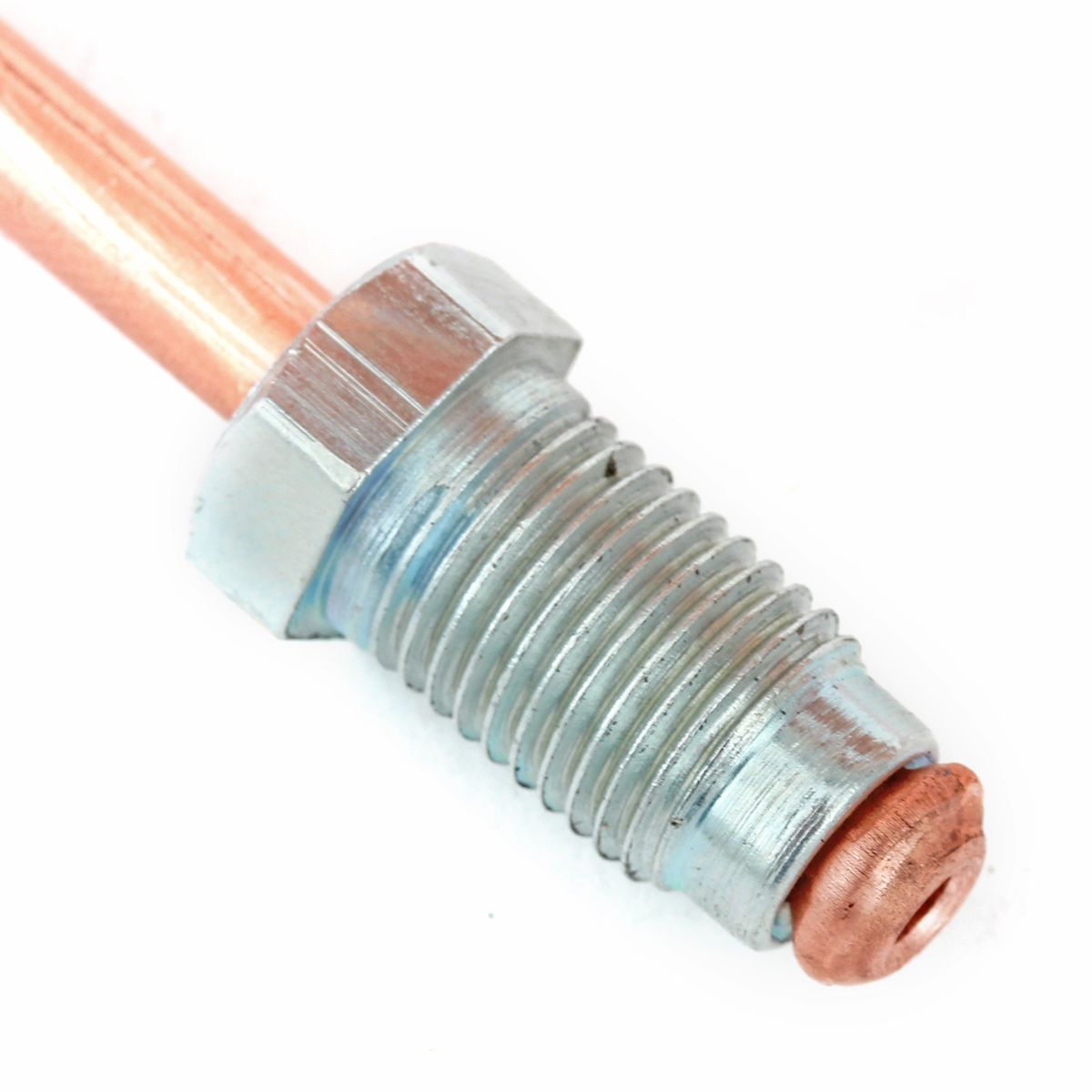

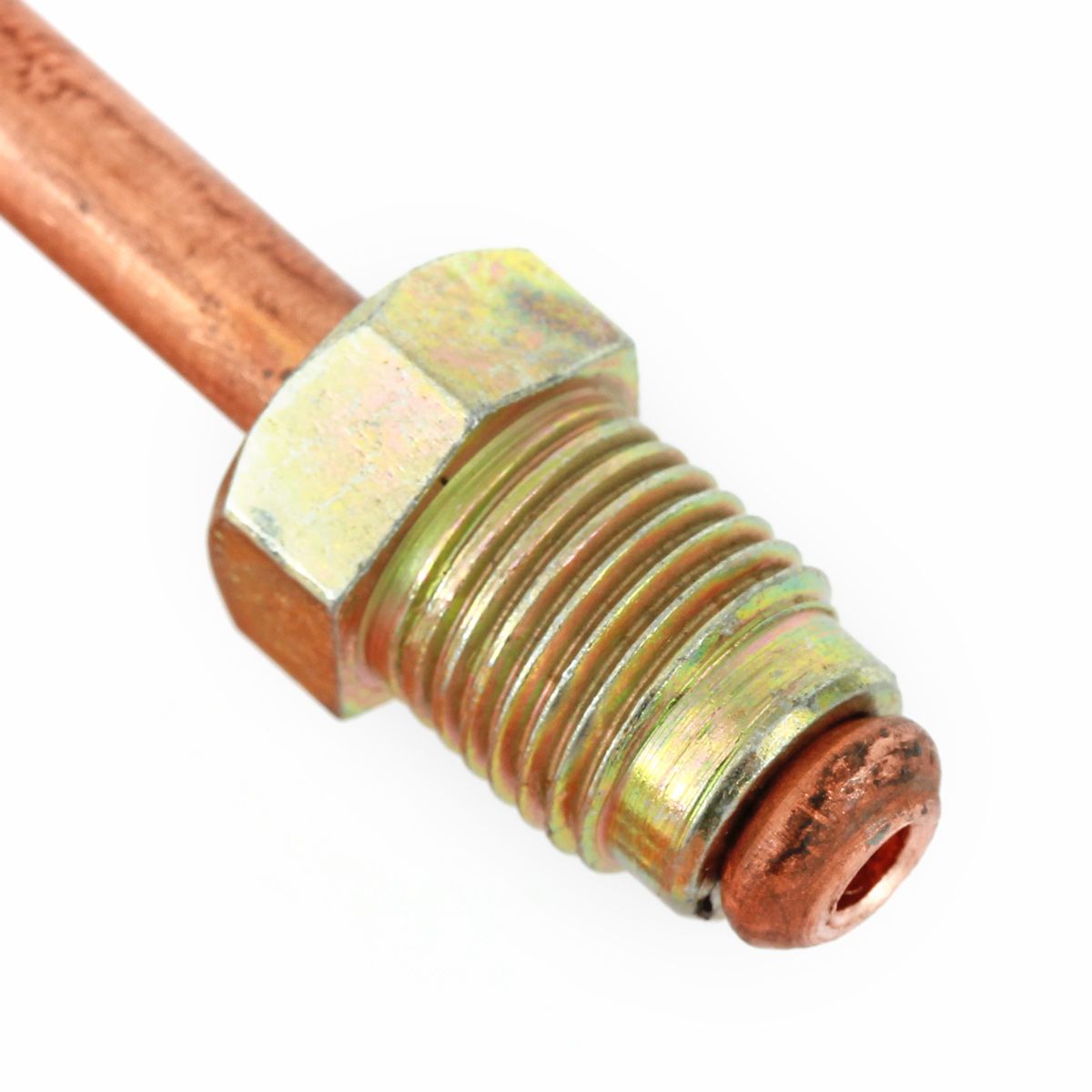

Ready made 102" (2590mm) brake pipe. Front pressure valve (FAM7821) to rear T piece (3H2424) on Mini front/rear split system without servo. 1 male UNF/1 male metric.

Buy top quality Classic Mini spares and parts from Mini Sport, the worlds premier online Mini Store!

Find all related parts with our Easy Parts Finder


No.
Description
Notes
Part No.
1
220mm (8.5'') m/cylinder to PR valve 10mm
- 2 x M (metric)
BP8M
1
229mm (9'') pre GMC227 to PR valve 10mm
- 2 x M (metric)
BP9M
3
356mm (14") GMC227 to PR valve 10mm
- 2 x M (metric)
BP14M
3
559mm (22") master cylinder to PR valve 10mm
Cooper SE, Cooper 1300cc and SPi- 2 x M (metric)
BP22M
3
660mm (26") master cylinder to PR valve
- 2 x M (metric)
BP26M
4
195mm (7.5'') PR valve to tube connector
- 2 x M (metric)
BP7M
6
Connector tube (metric)

BMK2466A
7
260mm (10'') tube connector to RH front hose
- 2 x M (1x metric)
BP10M
8
1093mm (43") LH to RH front hoses
- 2 x M
BP43
8
1118mm (44") RH front hose to LH front hose
- 2 x M
BP44
9
2440mm (96") PR valve to rear 3 way
- 2 x M (1x metric)
BP96M
9
2590mm (102") PR valve to rear 3 way
- 2 x M (1x metric)
BP102M
10
3 way connector - rear subframe, each

3H2424
11
Set Screw - 3 way to rear subframe
- 1/4" UNF x 1 1/4"
SH604091
12
Spring Washer
- 1/4"
GFK1124
13
Nut
- 1/4" UNF
GFK3211

610mm (24") rear regulating valve to LH hose
- 1 x M, 1 x F
BP24
14
640mm (25") 3 way LH rear Hose
- 1 x M, 1 x F
BP25
15
152mm (6'') 3 way to RH rear hose
- 1 x M, 1 x F152mm (6'') rear regulating valve to RH hose
BP6
16
Rubber Hose standard
front disc type
GBH249
16
Rubber Hose standard
front drum type
GBH170
17
Banjo connector - 2 way

21A654
18
Banjo Bolt connetor for stoplight switch (C16062)

7H7995
18
Banjo Bolt (no switch)

C5192A
18
Brake light switch
- pre '76
C16062
19
Copper Washer - front hose to banjo

233220A
20
Copper Washer - banjo to banjo bolt

3H550
21
Lock Nut - RH front hose to subframe

21A228
22
Lock Nut - LH front hose to subframe

2K8686
23
Lock Washer

WE600101
24
Regulator valve, all Mk1/2 to '69 inc Cooper S

21A1774
24
Regulator valve, Mk3 '69 to '78

21A2031
26
Standard Rubber Hose Rear each

GBH250
27
Lock Nut - rear hose to radius arm

NT606041
28
Lock Washer - rear hose to radius arm & rear subframe

GHF323
29
254mm (10'') rear hose to wheel cylinder
- 1 x M, 1 x F
BP10
30
Clip - brake pipe to front subframe

11K9181

Clip - pipe to master cylinder,
LHD '88on
AAU7803A
