AAU8340

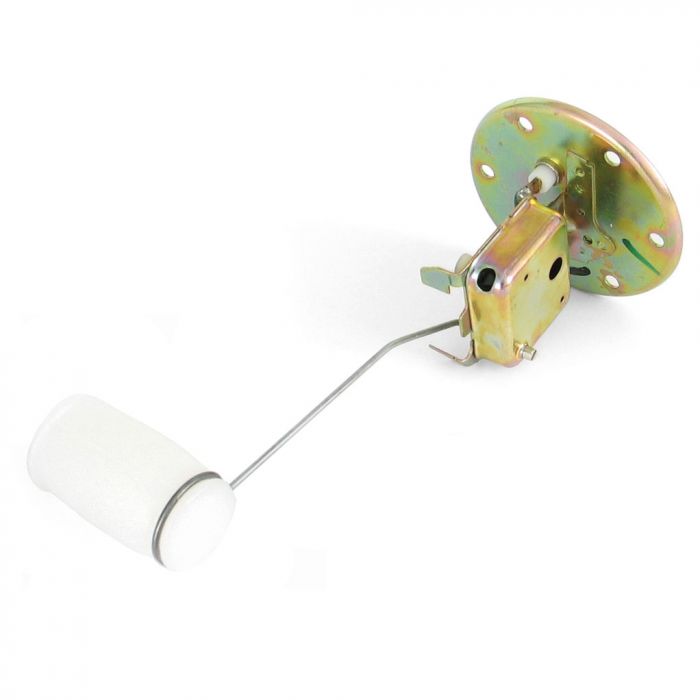

Fuel Tank Sender Unit - Van/Estate

In stock
Special Price £30.02 £25.02 Regular Price £31.26
Be the first to review this product
Fuel tank sender unit - van/estate
Add to Wish List Add to Compare
Fuel Tank Sender Unit for Classic Mini Van/Estate

Details

Reproduction original specification fuel tank sender unit suits Van/Estate/Pickup/Traveller fuel tanks.

Find all related parts with our Easy Parts Finder


No.
Description
Notes
Part No.
1
7.5 gallon fuel tank Mini carb models '74-'90
LH
ARP1043
1
Injection fuel tank
LH
WFE106090
1
5.0 gallon fuel tank - steel
RH
21A2183
1
Van, Traveller, Pick-up fuel tank

21A291
2
Seal - tank - filler neck

2A2069
22
Fuel tank rubber neck grommet - to '96

14A7057
22
Fuel tank rubber neck grommet - MPi

WGG100010
17
Short tank strap

2A2231
17
Long tank strap

2A2226

One Piece Tank Strap (diagonal fitment) - 7.5 Gal tank

21A2838
3
Van/estate sender unit

AAU8340
3
Carb type fuel sender unit

XNB10007
3
Injection fuel sender unit ('92-'01)

XNB100380
4
Mini Injection Fuel Pump - SPi and MPi

WFX100810
5
Seal - fuel pump to tank - SPi and MPi

EDP9317
6
Locking Ring for Fuel Tank Sender Unit

ARA1501
7
Sealing rubber ring for 7.5 gallon tanks

ARA1502
7
Cork Gasket for AAU8340

GUG705711GM

Screws for Van Tank sender unit (6 required)

53K165
2
Seal - tank - filler neck

2A2069
8
Filler Cap Assembly - Non Locking - Black

WLD10027
8
Filler Cap Assembly - Non Locking - Chrome

WLD100350
9
Washer - Sealing

21A2109
10
Filler Cap Assembly - Locking - Chrome

WLD100660
11
Washer - sealing

21A2109
12
Pipe - vent - fuel tank (765mm long approx)

CRC7575
18
Screw - retaining - tank strap to floor

GHF120

Nut - retainer - tank strap to floor

346071A

Setscrew - 5/16" UNF - tank strap to bracket

13H7583
19
Washer - spring

GFK1125
20
Screw

SH605161
21
Washer - spring

GFK1125
23
Pipe - pump to tank - 233.6cm(92")
1m of Fuel Hose
37H6844M
24
Sleeve - pipe

WZV10002
25
Hose - tank to pipe - 290mm
1m of Fuel Hose
37H6844M
26
Feed hose - tank to underfloor pipe
1m of Fuel Hose
37H6844M

Injection Fuel Filter - to VIN WD169573

GFE7059

Injection Fuel Filter - to VIN WD169574

WJN101192

Fuel Filter Bracket - SPi and MPi

WJU10142

Fuel Filter Bracket - SPi and MPi - Stainless Steel

SMB160

Fuel Filter Bracket - SPi and MPi - Powder Coated

SMB161
16
RH Fuel Tank connecting Pipe

21A2331
