Name: Front Subframe Tower Mounting Bolt - pre 1976
SKU: 21A90
Price: 5.076001 GBP
Availability: InStock

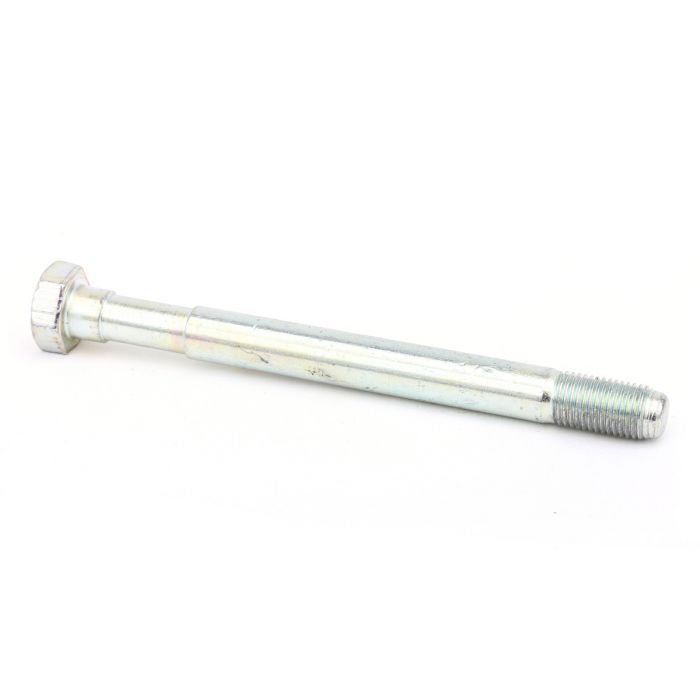

21A90 Front subframe mountng bolt

Mini front subframe tower mounting bolts fot the pre 1976 dry suspension subframe (21A2570).

Sold individually 4 are required per subframe.

Dont forget to change the lock tabs on these bolts when refitting your subframe. Order 2 of 21A1470.

The tower bolts on the hydrolastic Mini front subframe are different. See HBZ534. From 1976 onwards a single large bolt was used on each subframe tower. See 21A2596

Buy top quality Classic Mini subframes, spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Part No.

	Genuine built up and ready to fit (pre '96)		HMP241001
	Genuine built up and ready to fit ('97 on)		HMP241003
1	Genuine dry suspension models ('59-'76)		21A2570
1	Genuine dry suspension models 998cc ('76-'91)		KGB10022
1	Genuine SPi/ 1275cc ('91-'96)		HMP241004
1	Genuine MPi 1.3i ('96-'01)		HMP241005
1	Genuine Automatic hydrolastic (early)	NLA	21A1846
1	Genuine Automatic - pre 1997		KGB10024
2	Front mounting bolt	each	GFK5185
3	Washer - front mounting bolt	each	GFK1114
4	Spring Washer - front mounting bolt	each	GFK1125
5	Nut - front mounting nut - 5/16"UNF, nyloc	each	GFK3322
6	Packing washer - front mounting bolt	each	2A4292
7	Bolt - subframe mounting - dry suspension	to '76	21A90
8	Locktab - subframe mounting bolt		21A1470
9	Grommet - locktab		RFR220
10	Bolt - subframe mounting - hydrolastic		HBZ534
11	Spacer - subframe to body	to '76	21A2341
12	Rubber front mount (tear drop),	each	21A2624
12	Poly front mount (tear drop),	each	SPDSP678FR
13	Front tower mounting bolt,	each	21A2596
14	Washer - tower mounting bolt	each	53K3755
15	Tower bolt round bush,	each	KGE100050
	Tower to body oval pad,	each	KGE100060
15	Tower bolt round bush - plastic,	each	21A2597P
15	Poly top washer & bush	kit	SPDSP668A
15	Nylon round top washer & bush	kit	MSLMS0529
15	10 piece alloy bush	kit	SPDSP601
16	Bolt - subframe mounting to body	each	GHF201
17	Rubber rear mount,	each	21A2599
17	Poly rear mount,	each	SPDSP679FR
17	Solid rear mounts,	pair	MSLMS0530
18	Towing eye - late spec (replaces bolt)	each	KPU100160
19	Nut - towing eye 3/8" UNF	each	GFK3323
20	Towing eye (replaces bolt),	each	21A1241
